G2 AL

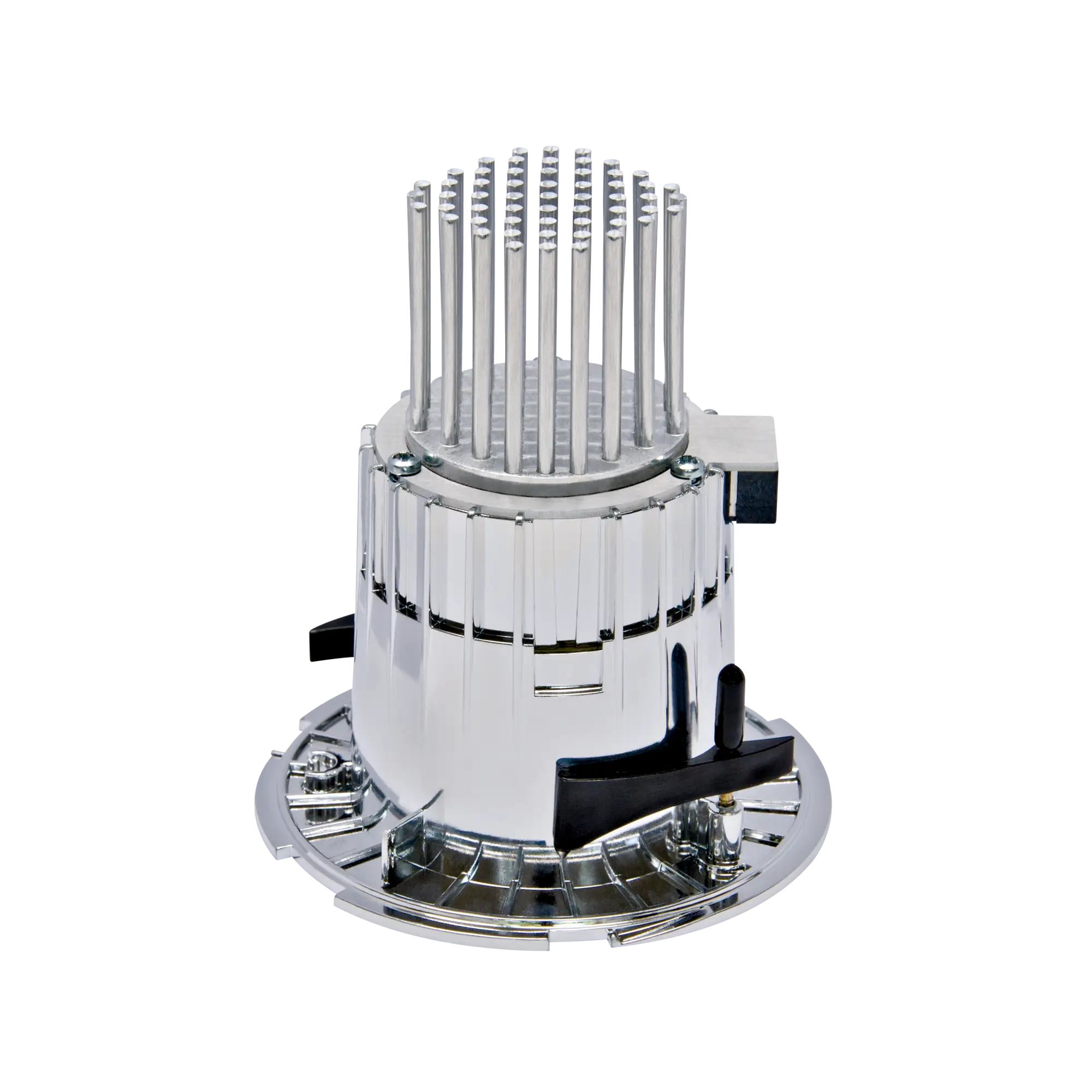

Recessed anti-ligature low wattage LED downlighters with remote control gear
Circular recessed anti-ligature luminaires. Choice of satin or clear prismatic 3 mm thick polycarbonate diffuser secured via high-pressure die-cast aluminium bezel using tamper-resistant pin Torx screws.
Product details
- Choice of 3mm thick prismatic polycarbonate or satin polycarbonate lens
- Remote phosphor mixing chamber
- Supplied with remote gear unit fitted with 2 m lead
- Cover secured using tamper-resistant T10 pin Torx screws
-
IP44 (IP20 above ceiling)
-
IK09
-
Up to 48.6 LL/CW
-
Specification
Lighting management
Lighting control system
Dimming (DALI)
Non-dimming
Emergency system
AutoTest Emergency
Non-emergency
Standard Emergency
Specification
Mounting
Recessed
IP rating
IP44 (IP20 above ceiling)
Impact rating
IK09
Lighting
Optic
Prismatic diffuser
Satin diffuser
Lumen output
325 lm - 670 lm
Efficacy
Up to 48.6 LL/CW
Emergency data
Emergency lumen output
85 lm
Emergency type
Maintained
Emergency duration
3 hours
Battery specification
Nickel Metal Hydride (NiMH)
Power
LED power
6 W - 12 W
Circuit power
7 W - 14 W
LED characteristics
CRI
80+
Colour temperature
4000 K
Rated life (hours)
100 K - L90/B10
Compliance
UKCA
Yes
CE
Yes
Energy efficiency class
This product contains a light source of energy efficiency class C
